Oldie but Goodie: Fuquay Transformed

Remember the battle scarred red frame I got so excited about during my last visit to Maldon Shot Blasting & Powder Coating? (http://www.ctc-powder-coating.co.uk/) Well, as I suspected, it was a genuine Greg Fuquay.

Fuquay was an American builder, trained by Serotta cycles, who spent much of the 1990s crafting some very unique road and mtb framesets, before returning to Alabama and his earlier aerospace career. This one features his trademark combination of TIG welded and brazed construction.

Sure, most TIG welded steel framesets, especially production bikes have brazed bottle bosses, cable guides, mudguard eyelets and carrier mounts. Few combine the two structurally.

Speaking of which, the tatty aesthetic was apparently down to extended indoor trainer slavery-hence, sweat induced corrosion/pitting along the top and seat tubes. The dent damaged seat stay was filled with brass and smoothed flat for a modest £18, before passing through the iron-oxide blast cabinet.

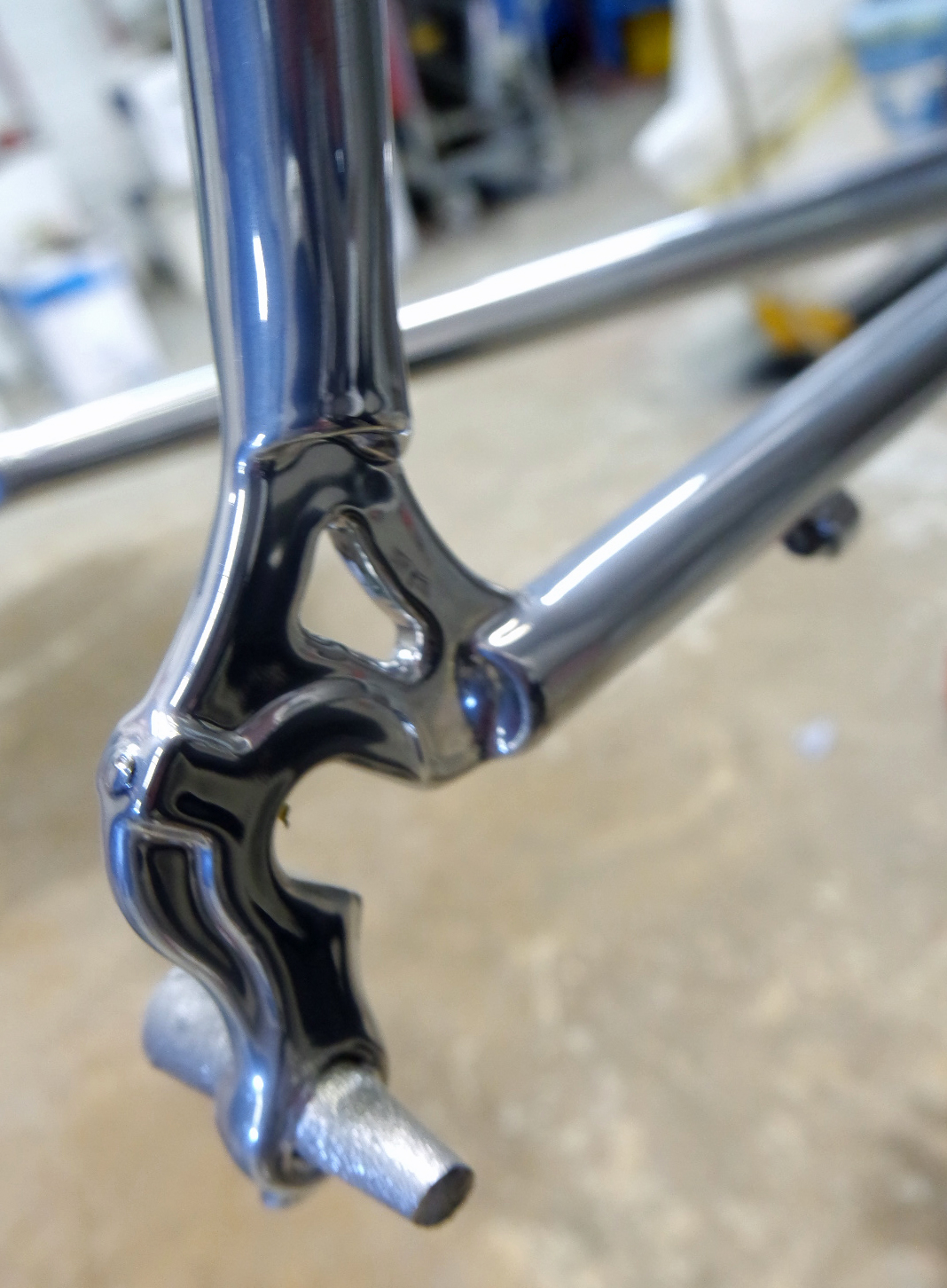

Structurally sound, there was little trace of internal corrosion, so threaded areas masked and on with the phosphate base coat. While this baked in their curing oven, Graham heaved a huge box of chrome effect powder across the workshop and fed this into the gun. Several minutes later, the frame emerged ready to receive said electroplate effect.

Graham weaves around the tubes, shrouded in a silvery mist. Within five minutes, he’s done, given a quick visual twice-over with extra powder added around the bottom bracket shell. Then it’s returned to the oven for another round of curing prior to receiving a protective clear coat.

While generally an advocate of protective lacquers, in this instance it tempers the sheen, giving a nickel effect under normal light.

However, when properly applied, polyester powder coating will trump wet spray finishes like stove enamels and 2pac in the durability stakes. Therefore, clear coat is very much optional. Total cost for his transformation came in at £116.40 including VAT.

As for the the Rosso Red Oscar Simonato Columbus frame; it re-emerged in this extremely fetching metallic blue. Another specialist finish, which brought the price to £110 including VAT-£45 over a standard gloss blue such as my Holdsworth’s-RAL 5024 (assuming no post blast remedial works are necessary).

Right, that’s enough distraction for me. Time I was back at my desk, penning some more adventures for the characters in my series of children’s stories.

Toupes, Tweaks & Tug Jobs

Further plotlines and characters for my series of children’s stories devised and deadlines herded into their respective pens, Border collie fashion, I settled to slathering some fresh Muc-off Carbo-grip to the Holdsworth's Tifosi branded composite post.

While about it, the Specialized toupe' was reinstated on grounds of grams and the coarse grain leather saddlebag substituted for this Zefal. Aside from superior capacity and zero sway,it includes retro-reflective detailing and LED tab. I had hoped this Cycliq fly 6 HD camera  and LED combo would cadge a lift but its specifically designed for post mounting. No bad thing, since the latter provides superior tenure and blur-free recording.

Polishing and preening complete, attention turned to its track nuts, which needed nipping tight. Obviously, I don't generate    the herculean output of a 90 kilo sprinter. That said; proves transmission braking and hard core honking call  for regular inspection.

Contrary to popular misconception, fixed chains wear faster than their derailleur counterparts. Sure; they’re no skipping up and down a cassette but those forces, coupled with grotty winters (and in my case, occasional trailer tugging duties) lead to hard and relatively short lives.

I’ve managed 3,000miles from this Z1X inox which is roughly twice that of a typical nickel plated speed derailleur chain subjected to similar conditions. Now well into late middle age, I’m probably looking at a further 700miles before it becomes bin fodder. Chances are, we’ll receive another beefy model for review by then; otherwise, I’ll go for another X1.  (Full report on Seven Day Cyclist www.sevendaycyclist.com).

On the subject of trailers, leaving the house without a camera is unthinkable-there’s always something interesting to capture. I overtook this rider on a bypass road while driving the KA and pulled into a layby several hundred metres away to get some shots of his Specialized and Burly combo.

Bikes are incredibly versatile and can haul surprising loads safely, at sensible speeds and for long distances.

Admittedly; the safe bit is clearly open to interpretation, depending on where you are in the world and I’m not sure, even with gearing lower than a snake’s testicles, that I’d attempt hauling Peter Eland’s payload www.eland.org.uk/

Nonetheless, a week’s family shop is easily brought home in a typical mid-range unit. In keeping with panniers, a low slung hitch and sensible weight distribution  are musts but so long as 35kilos isn’t exceeded, I can haul more in my Bob Yak homage than the KA and other micro-minis.

Single wheel designs, such as the Yak and its followers track behind the bike and enjoy a low centre of gravity, which makes them a more obvious choice off road.

Sneaking through tighter gaps and side alleys is also easier than their two wheeled counterparts. On the flip side, two wheelers tend to cope better with potholes and make stop-start parking more convenient. Hitches are similarly crucial, look for something low slung that bolts neatly to the rear dropout.

Chariot trailers used to employ a clever ball-joint coupling that was secure, yet counter intuitive to use. Avoid post mounted types crude, or otherwise since they’re agricultural and cursed with a high centre of gravity, which have a detrimental effect upon handling. Substantial twisting forces generated by the beam “wag” the rider, which is tiring to counteract and overcome, even over moderate distances.

Elsewhere, Green oil's workshop sized, gun-friendly 200ml tube has just arrived. This makes for very precise, mess and waste-free delivery ; especially to quick release skewers, small fasteners, bearings etc. Other than an initial squeeze, contents flow much faster than the original dropper-bottle, which often needs standing in hot water for a minute or so, particularly in cooler weather.

Initial reactions are favourable and it seems much stockier than the original recipe, which though good, degraded faster than PTFE or lithium pastes. Unlike these, it’s reckoned safe on rubberised components such as seals and suspension bushings. We’ll see…Off to watch some old frames restored now.
